About This

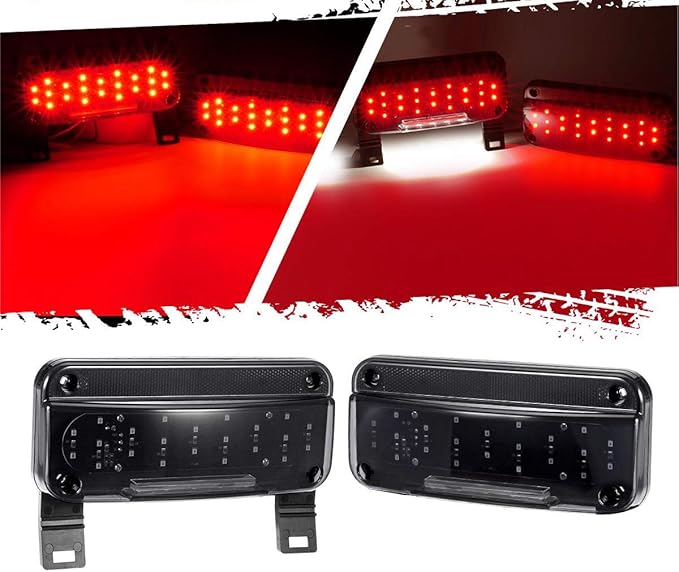

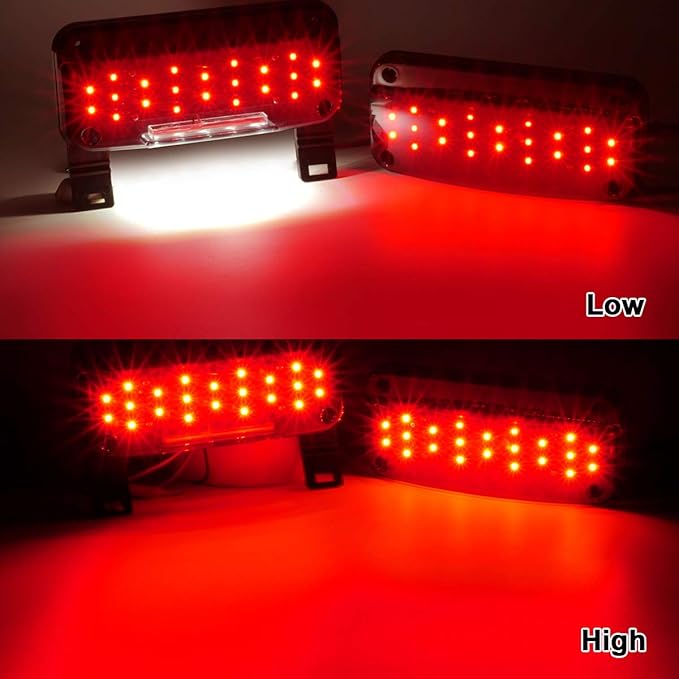

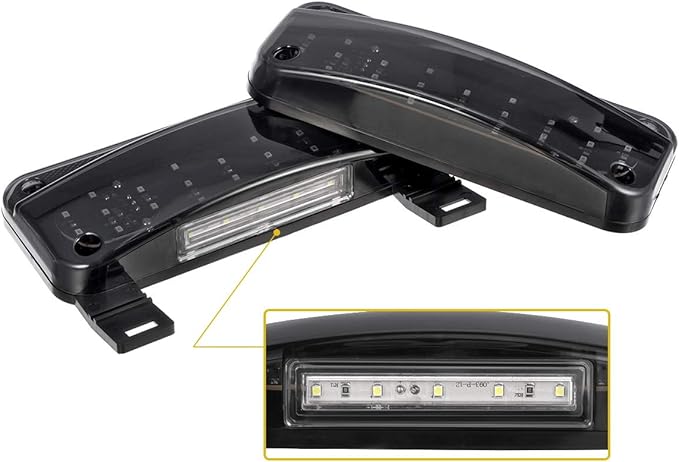

• 8-5/8" x 3-7/8" Camper RV Tail Lights Kit serves 3 functions: stop light, turn signal light, taillight. Perfect for surface mount on RV CAMPER TRAILER. At the bottom of the left hand driver's side, you can see a license plate light and license plate mounting brackets built in. Smoke lens. Black plastic base;
• [Package Content] 2pcs Red Surface Mount Tail Lights. left hand driver's side: 27 Diodes( 22 Red+5 White ); Right Hand Passenger's Side: 22 Diodes; this Red Surface Mount Tail Light uses LEDs, which make great replacements for incandescent lights. They last about 50 times longer. They are more efficient, provide better light with less power output, and of course there's not bulbs to replace, or not brittle filaments;
• This Black Base LED Low Profile Combination RV Tail Light is designed to mount on the surface of a trailer and Camper etc.; there's three wires to connect. White is your ground wire, black is your taillight, and then the red is the brake and turn signal. This light is SAE and DOT approved;

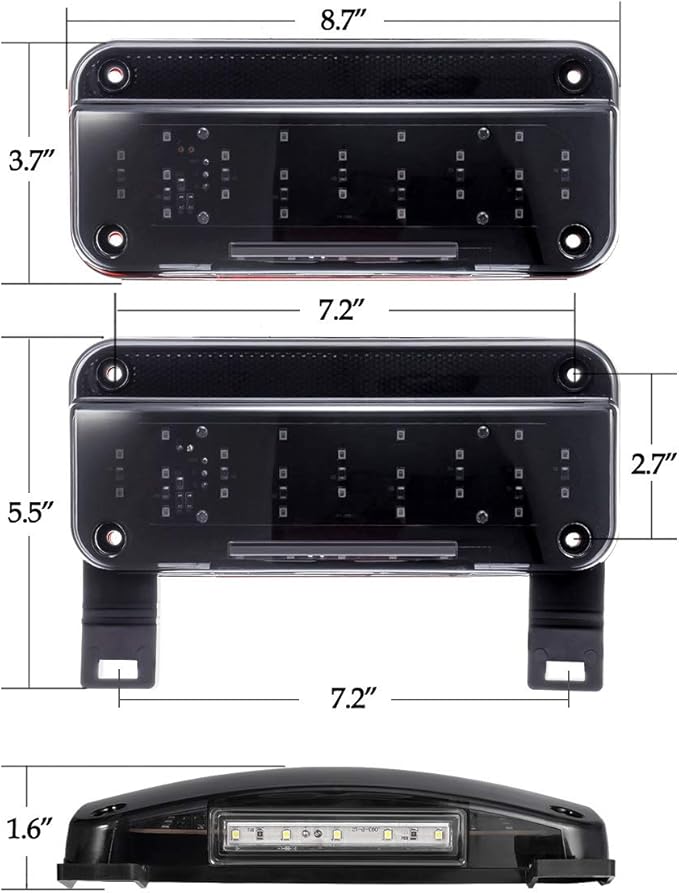

• Dimension: overall length: 8 5/8", The height: 3 7/8" and the total depth is 1 3/5"; Mounting Holes are Approx. 7" by 2 1/2" Apart;

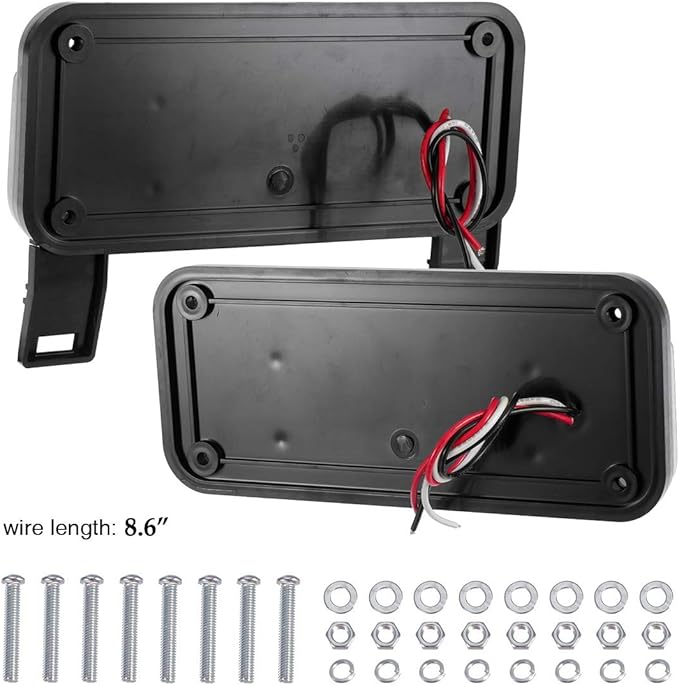

• Easy Installation: This Smoke Lens RV LED Combination Tail light is Surface mount, which means that it installs flat against the surface of the trailer, but you may need a hole in the mounting surface for the wires to pass through. This type of light is installed using a flange or bracket that has mounting holes. And mounting hardware is used to secure the light to the trailer;

Overview

• Brand : Partsam
• Color : Smoke Lens
• Specific Uses For Product : RV Lights, Trailer Lights, Stop Lights, Brake Lights, Turn Signal Lights, Exterior, Number Plates, License Plate Lights, Rear Lights, Tail Lights, Taillights, Running Lights RV Lights, Trailer Lights, Stop Lights, Brake Lights, Turn Signal Lights, Exterior, Number Plates, License Plate Lights, Rear Lights, Tail Lights, Taillights, Running Lights
• Vehicle Service Type : Trailer, RV, Truck, Tractor, etc
• Special Feature : 3-Wire pigtail: White wire for ground; Black wire for tail light; Red wire for stop/turn signal light, Low-profile RV tail light serves 4 functions: Stop, turn, and tail; Built-in license plate light illuminates trailer license plate, Rectangle Low-profile RV light serves 4 functions: brake, tail, turn, and license plate light. Built-in license plate bracket on Driver Side. Mounts on surface of trailer. Hardwired with 3 wires; 3-Wire pigtail: White wire for ground; Black wire for tail light; Red wire for stop/turn signal light, Low-profile RV tail light serves 4 functions: Stop, turn, and tail; Built-in license plate light illuminates trailer license plate, Rectangle… See more
• Auto Part Position : Outer
• Lens Color : Smoke
• Lens Material : Polycarbonate
• Unit Count : 2.0 Count
• Assembly Required : No
• Light Source Type LED : Voltage 12 Volts
• : Light Source Type LED
• : Voltage 12 Volts
