About This

• With a pull force of more than 3000 pounds, this electric winch delivers a 1.0kw/ 1.3HP 210 amp 12V DC permanent magnet motor with a 153:1 planetary gear system with a fully loaded line speed of 3.3 ft/min and a load free line speed of 1.3 ft/min.

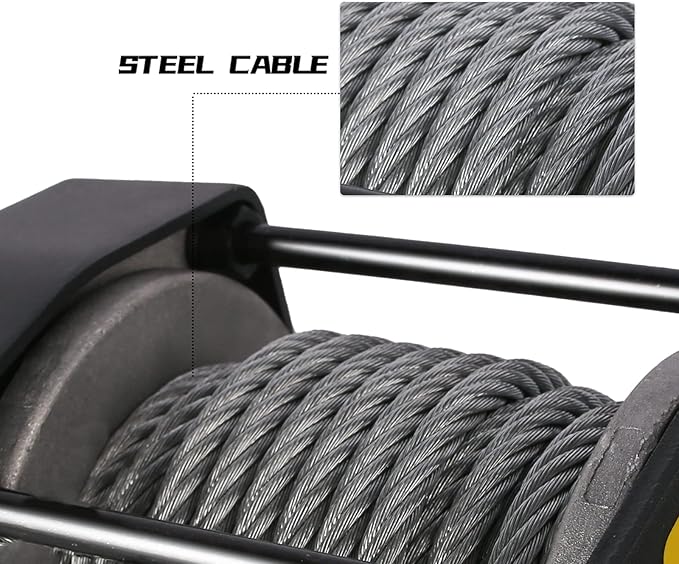

• Waterproof powder coated surface, resistant to corrosion. Durable 3/16" x 32' steel cable is sufficient for any outdoor traction operation.This 12 volt UTV winch includes a choice of steel rope to suit all the different tasks you may have.

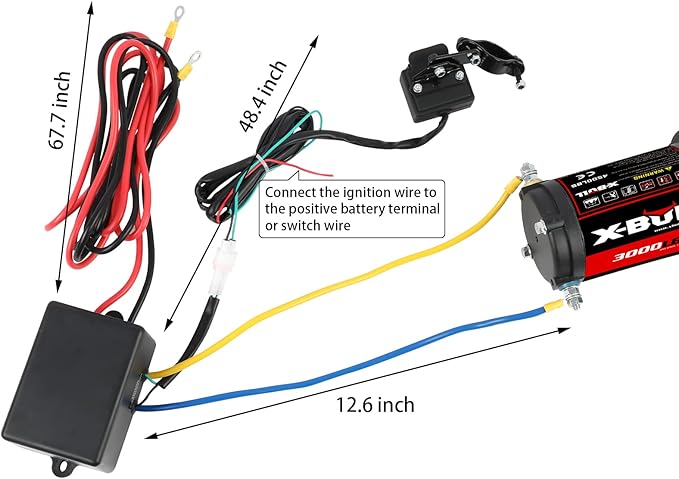

• Each lead wire is connected to the corresponding position, the connection is very convenient and fast; 12.63-inch (approx. 32.0 cm) blue (-) and yellow (+) wires are connected to the motor; 68.75 inches (about 172.0 cm) Red (+) wire and black (-) wire Connect to battery (All wires: No. 6) Winch and flat rod, mounting bracket (not included in this product). Using grab blocks helps make your job easier; Another safety tip: Place the blanket on the cable to reduce whipping if it comes loose.

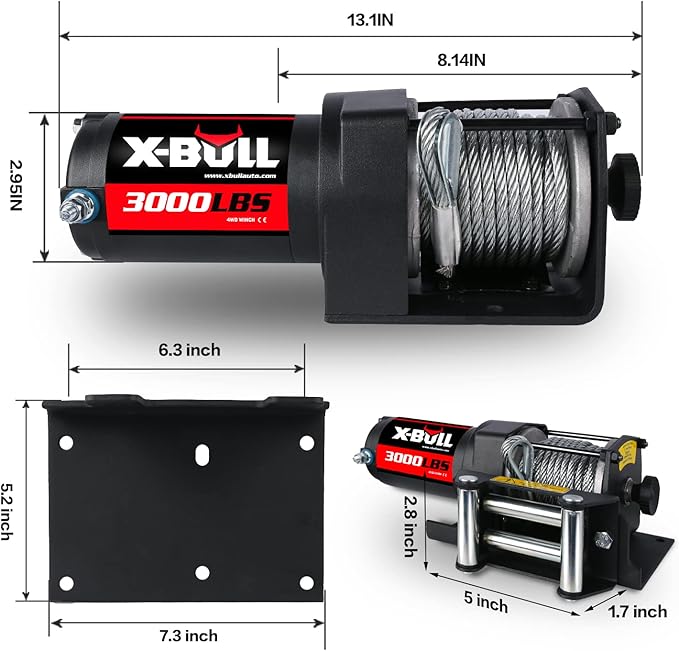

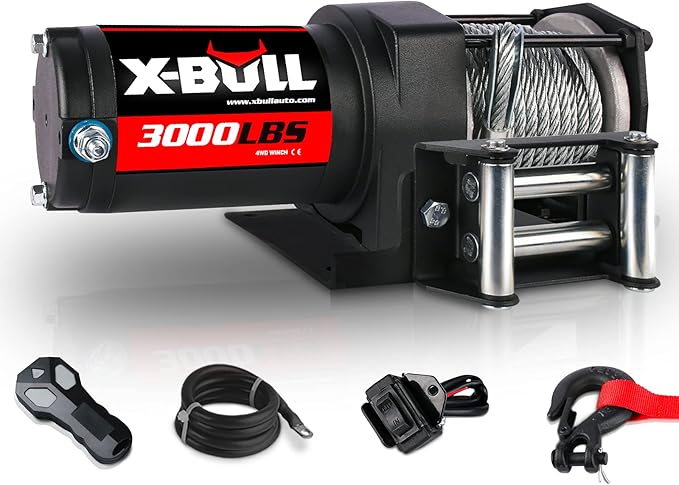

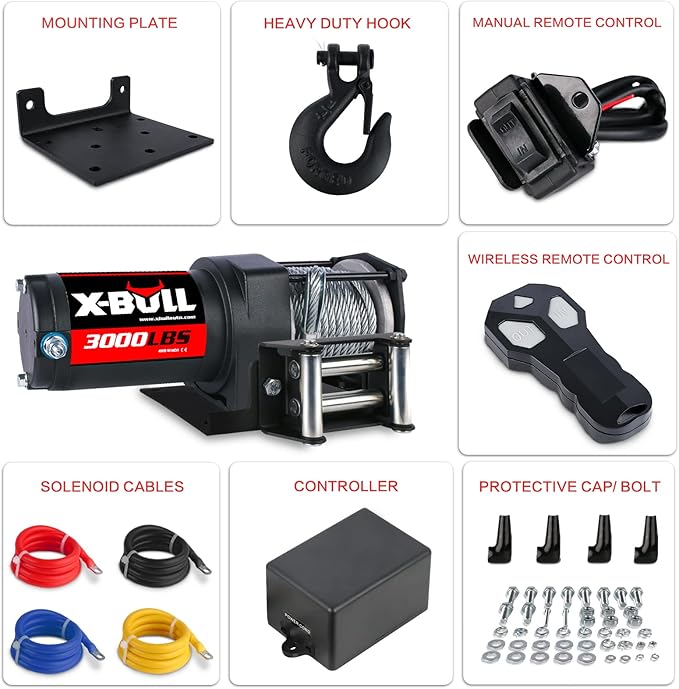

• The winch will include an 18.5 x 13 cm (L x W) universal mounting plate for mounting on the rear of the machine, which will need to be modified to fit with each particular machine, as well as a wireless remote control for the 9.8-11.6 m range, a 1.2 m handlebar rocker, and a 0.6 cm U Hook, chain fly bar,8.0 cm mounting bolt pattern.

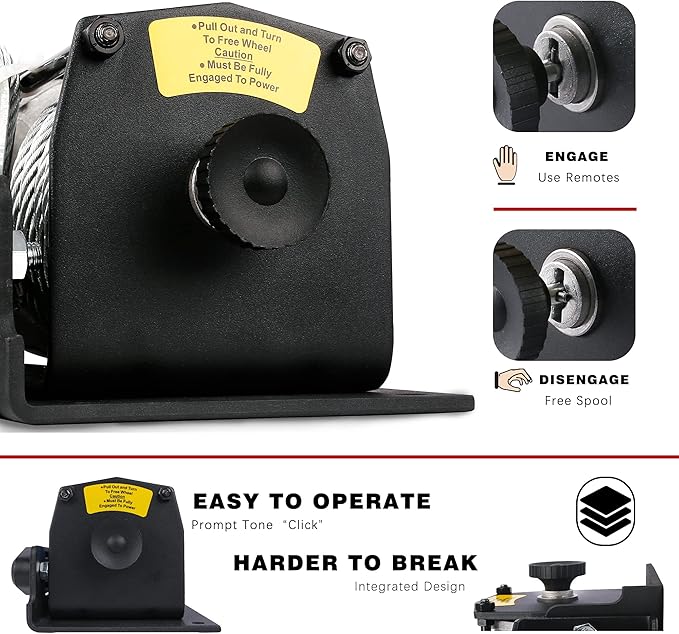

• We use the planetary gear system, which can automatically brake, while we want to achieve the highest speed and a certain guarantee to provide safe and reliable power in any situation.
